Chevy Silverado Bed Sizes Guide: Dimensions, Charts, and Which Bed to Choose

Chevy Silverado Bed Sizes Guide: Dimensions, Charts, and Which Bed to Choose

The Silverado bed sizes question comes up at Barry’s Chevrolet in West Union, Ohio regularly, usually from buyers who are trying to figure out whether a specific load will fit before they configure the truck.

Getting the bed decision wrong is an easy mistake and a frustrating one once you are committed to a configuration. This guide gives you the exact interior dimensions for both Silverado 1500 bed lengths, a year-by-year reference chart, the cab and bed combinations available, and the practical guidance you need to choose correctly for how you use the truck.

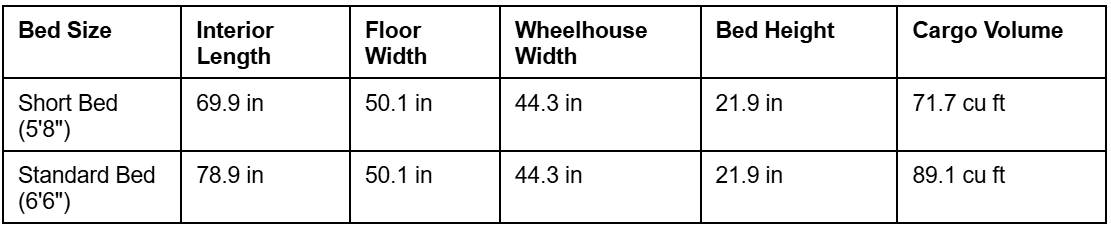

Silverado 1500 Bed Dimensions: 2019-2026 (Current Generation)

The Silverado 1500 is available in two bed lengths in the current T1XX generation. Here are the exact interior dimensions for both:

table

A few important notes on reading these numbers:

  • Interior length is measured inside the bed at floor level. It is slightly longer than the bed’s common name: the short bed is called 5’8″ but measures 69.9 inches (nearly 5’10”) interior. The standard bed is called 6’6″ but measures 78.9 inches (nearly 6’7″) interior.
  • Floor width (50.1 inches) is the full width of the bed floor ahead of the wheel housings. The wheelhouses narrow the usable width to 44.3 inches in that section. A standard pallet (40 x 48 inches) fits between the wheelhouses if positioned correctly.
  • Bed height (21.9 inches) is from the bed floor to the top of the box rail. Adding a cap, rack, or extender changes the functional usable height.
  • Cargo volume is with the tailgate closed. It reflects the total enclosed space including the areas beside the wheel housings.

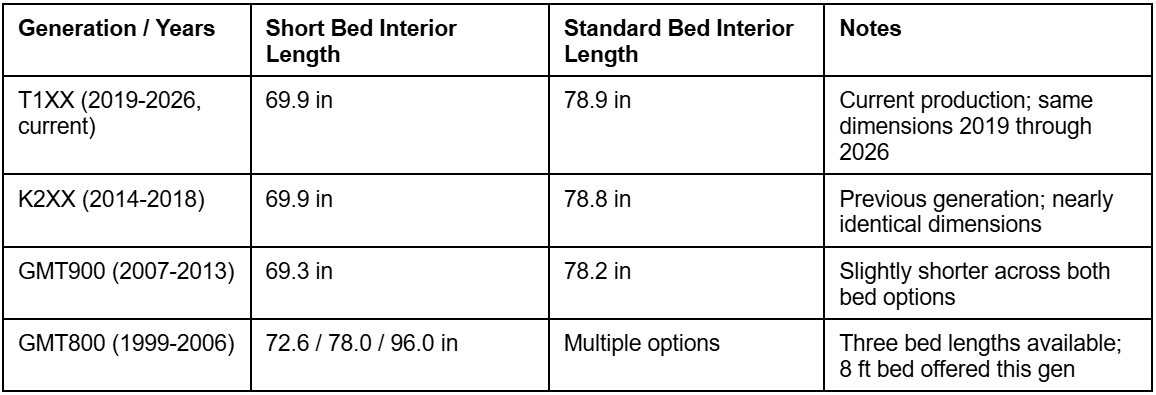

Silverado Bed Size Chart by Year

The most searched version of this question asks for bed dimensions by year. Here is the year-by-year reference:

table

For most practical purposes, buyers looking at a 2019 or newer Silverado are working with the same bed dimensions as a new 2025 or 2026. The T1XX generation maintained consistent bed dimensions across the full production run from 2019 through 2026.

The most meaningful transition for used buyers is the 2019 redesign. The T1XX introduced the updated Durabed with improved tie-down systems, the available MultiPro tailgate on upper trims, and revised inner wheelhouse liner design. The dimensions are similar to the K2XX (2014-2018) but the hardware and features are updated.

The GMT800 generation (1999-2006) is the outlier. That generation offered three bed lengths including an 8-foot long bed. The current Silverado 1500 dropped the 8-foot bed option. The 8-foot bed is now available on the Silverado 2500HD and 3500HD only.

Which Cab and Bed Combinations Are Available

Not every bed length is available with every cab configuration. This is one of the most important constraints to understand before you configure:

table

The critical constraint: the Crew Cab is only available with the short bed on the Silverado 1500. There is no Crew Cab with the standard bed in the half-ton lineup. If you need the longer standard bed and a full rear seat with adult legroom, the Double Cab with the standard bed is the configuration that delivers both. If you need the full Crew Cab rear seat and the long bed, you are looking at the Silverado 2500HD or 3500HD.

For the full explanation of the cab configuration differences and what each one provides, see our Silverado Crew Cab vs Double Cab guide.

Short Bed vs Standard Bed: The Practical Decision

Here is the direct guidance for buyers in Adams County and Southern Ohio who are deciding between the two bed lengths:

Short Bed (69.9 inches interior): Right for:

  • Buyers who want the Crew Cab configuration. The Crew Cab is only available with the short bed.
  • Daily drivers who use the bed for occasional hauling and their regular loads do not exceed 5 feet 8 inches.
  • Buyers who prioritize parking and maneuvering ease. The short bed Crew Cab is a more manageable overall length in tight spaces, farm lanes, and job site parking.
  • Buyers who primarily tow and use the bed for secondary cargo rather than primary hauling.

Standard Bed (78.9 inches interior): Right for:

  • Buyers who regularly haul materials in the 6-foot-plus range: lumber, fence posts, pipe, grain bags, feed sacks. The standard bed gives you 9 additional interior inches over the short bed.
  • Buyers who want maximum cargo volume. The standard bed adds approximately 17 cubic feet over the short bed.
  • Buyers who use the truck as a primary work tool and want every available inch of bed space.
  • Buyers who are choosing between the Double Cab and Crew Cab and find the standard bed’s length more useful than the Crew Cab’s extra rear legroom for their specific use.

What Actually Fits in a Silverado Bed

Here are the common haul scenarios for Southern Ohio buyers and how they fit in each bed:

  • Full sheet of plywood (4 x 8 ft = 96 inches): does not fit flat in either bed with the tailgate closed. With the tailgate down, the sheet rests on the tailgate with overhang. The standard bed handles this with less overhang than the short bed.
  • Hay bales (square bales, typically 36-40 inches long): single bales stack well in either bed. Large round bales (800-1,200 lbs) will fit in the bed but weight management and axle loading require attention. Do not exceed the door jamb payload rating.
  • Bags of concrete (80 lbs each): a standard half-pallet (12-18 bags) fits in either bed within a single-trip load. A full pallet (42-48 bags, approximately 3,400-3,800 lbs) exceeds the payload rating of all Silverado 1500 configurations.
  • ATV or UTV: most full-size ATVs fit lengthwise in the short bed with the tailgate down or a bed extender. UTVs vary significantly by model: measure before you load. The standard bed gives more loading flexibility.
  • Firewood: a half cord (approximately 1,000-1,500 lbs depending on species and moisture) is a practical single-load target for most Silverado 1500 configurations. A full cord (2,000-3,000 lbs) exceeds most configurations’ payload ratings.
  • Contractor materials (tools, bags, smaller equipment): either bed handles daily contractor loads. The standard bed provides more organized layout room for tools and materials spread across the bed floor.

Durabed Features Worth Knowing

The current Silverado 1500 uses the Durabed cargo system across all trim levels. Key features:

  • CornerStep bumper: built-in step on both rear corners of the bumper for easy bed access without a step ladder or climbing the tire.
  • Tie-down system: 12 fixed tie-down points standard. Some higher trims offer moveable stake-pocket tie-downs for flexible cargo securing.
  • LED cargo light: illuminates the bed for loading and unloading in low light conditions.
  • MultiPro tailgate: available on higher trims (LTZ and High Country). Folds in six configurations including a load stop, step-up position, and work surface position. Standard trims use a conventional one-piece tailgate.
  • Bed floor material: composite with a textured surface. A bed liner or mat is a practical addition for protecting both the bed surface and cargo.

Frequently Asked Questions

How long is the short bed on a Silverado?

The Silverado 1500 short bed has an interior length of 69.9 inches (approximately 5 feet 10 inches). It is commonly called the 5-foot-8-inch bed. The floor width is 50.1 inches, narrowing to 44.3 inches between the wheel housings.

How long is the standard bed on a Silverado?

The Silverado 1500 standard bed has an interior length of 78.9 inches (approximately 6 feet 7 inches). It is commonly called the 6-foot-6-inch bed. Floor width is the same as the short bed: 50.1 inches at the floor, narrowing to 44.3 inches between the wheel housings.

What are the 2025 Silverado bed dimensions?

The 2025 Silverado 1500 uses the same T1XX platform bed dimensions as all current-generation trucks. Short bed: 69.9 inches interior length, 50.1 inches floor width, 44.3 inches between wheelhouses, 21.9 inches height. Standard bed: 78.9 inches interior length, same width and height dimensions. These are unchanged from the 2019 model year forward.

Does a sheet of plywood fit in a Silverado bed?

A standard 4 x 8 sheet (96 inches long) does not fit flat in either Silverado 1500 bed with the tailgate closed. With the tailgate down, the sheet rests partially on the tailgate. The standard bed handles this with less overhang than the short bed. For buyers who regularly haul full sheets, the standard bed is the better fit and a bed extender helps manage the overhang safely.

Can I get a long bed on the Silverado 1500 Crew Cab?

No. The Silverado 1500 Crew Cab is only available with the short bed. If you need the standard bed alongside a four-door configuration, the Double Cab with the standard bed is the combination that works on the Silverado 1500.

What are the Silverado bed sizes by year for 2019 through 2026?

All T1XX generation Silverado 1500 trucks from 2019 through 2026 share the same bed dimensions: short bed 69.9 inches interior length, standard bed 78.9 inches interior length. The dimensions have not changed across the T1XX generation.

Talk to Barry’s About Silverado Configuration

Barry’s Chevrolet is a family-owned dealership in West Union, Ohio. We carry new 2025 and 2026 Silverado 1500 trucks in both bed configurations across multiple cab styles and trim levels. If you want to see both bed lengths in person to understand the actual difference, come in. Sometimes the right answer is clearer once you have a tape measure and a truck in front of you.

See the full Silverado 1500 lineup at Barry’s. For the cab configuration decision, see our Silverado Crew Cab vs Double Cab guide. For the full trim breakdown, see our Silverado 1500 trim levels guide.
